VPhot Effect of Signal Circle Radius graph

Due to the New England winter storm currently affecting the area, phone coverage at the AAVSO may be much reduced until Wednesday. The staff is still available via email, and we suggest using that method to contact us if you need assistance.
onj's picture
onj
Offline
Joined: 2010-07-25

Hi,

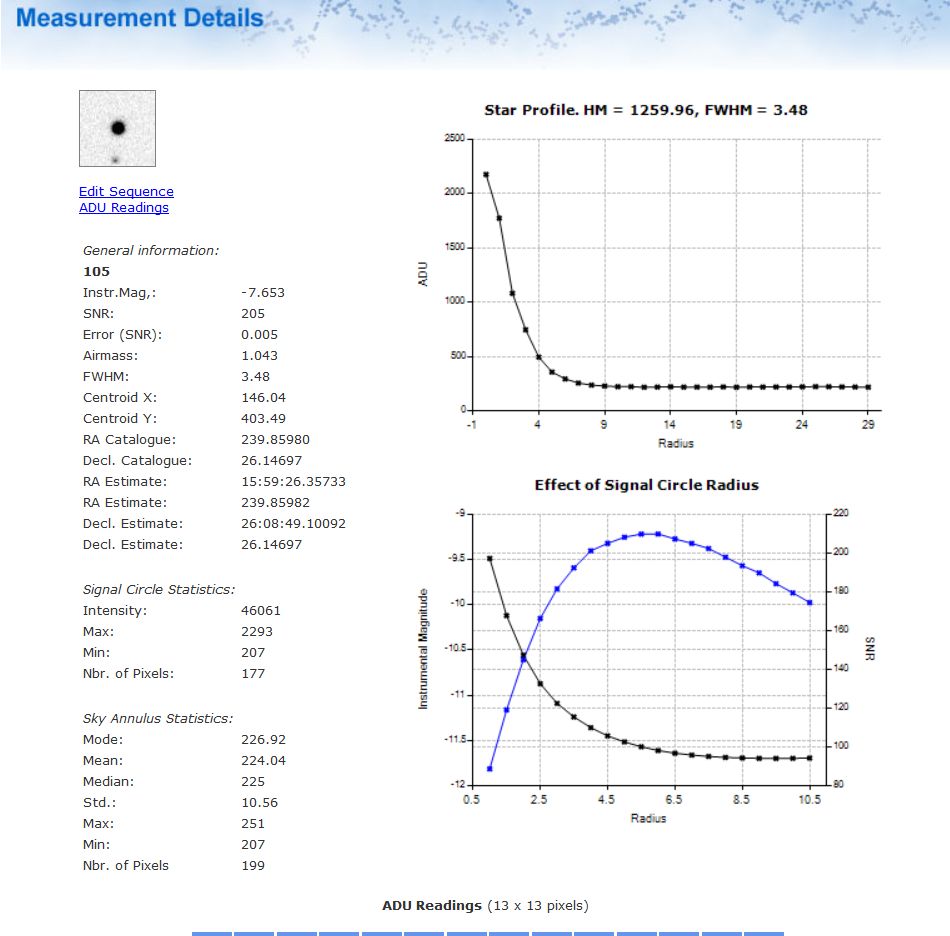

I am wondering as the meaning Effect of Signal Circle Radius in the Measurement Details page in VPhot. Please see attached for a screen capture for my example.

I take the blue curve to be the SNR, with the SNR of 205 corresponding to my aperture radius of 7 pixels.

However, in the black curve, the Instrumental Magnitude of -7.653 lies outside the range of the y-axis values of from -9.0 to -12.0.

I wonder would it be possible to label each curve.

John



AttachmentSize
measurement details.jpg88.14 KB
