AAVSO Binocular Program

The AAVSO Binocular Program consists of 153 stars in the northern and southern hemispheres. They are mostly semi-regulars and Miras, with a few other types sprinkled in. Most of the stars range between 3.0 and 9.5V and can be observed best using simple hand held binoculars.

The sequences for these stars have been specially selected for use with binoculars and all the "Binocular Charts" will display only those comparison stars selected for the sequence for that star. You may still need to plot your own finder charts or use a star atlas to locate these stars in the sky at first, but once you learn them you will only need the comparison star charts.

Plotting Charts

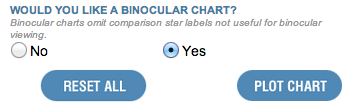

Near the bottom of the VSP form there is a question which asks you if you would like to plot a Special Chart. Clicking "Binocular" will enable only binocular sequence comparison stars to be labeled on any chart you plot while this is activated.

You will know when you are in this mode because all the binocular charts are plainly marked in the upper right hand corner. BE SURE TO TURN IT OFF TO PLOT REGULAR TELESCOPIC CHARTS WHEN YOU ARE DONE.

Binocular sequences only go as faint as 9.5V. Stars whose minima take them below 9.5V should be observed using regular telescopic charts when they are that faint.

Plot Binocular Charts Now!

The Program Stars

There is a complete list attached to this page in .csv and Excel format.  The spreadsheet contains the star name, constellation, coordinates, type, period, range, suggested FOV and limiting magnitude for charts and notes. Entering the suggested FOV in arcminutes and the limiting magnitude we have specified into VSP will generally give the best results. You are, of course, free to plot charts with your own parameters.

There are many more variable stars in the range of binoculars not included in the AAVSO Binocular Program. At this time, there are no plans to expand the program to include more stars. We suggest you concentrate your efforts on these stars first.

Below is a list of the binocular program stars sorted by constellation and name. You may also get a list of these stars from VSX here.

Name AUID Coords Const Type Period Mag
EG And 000-BBC-010 00 44 37.19 +40 40 45.7 And ZAND+E 482.57 6.97 - 7.8 V
V0370 And 000-BCT-547 01 58 44.33 +45 26 06.9 And SRB 119 6.85 - 8.05 V
tet Aps 000-BCT-582 14 05 20.10 -76 47 48.0 Aps SRB 111 4.65 - 6.20 V
R Aqr 000-BCR-898 23 43 49.46 -15 17 04.2 Aqr M+ZAND 387 5.2 - 12.4 V
R Aql 000-BCF-225 19 06 22.25 +08 13 48.0 Aql M 270.5 5.5 - 12 V
UU Aur 000-BBL-525 06 36 32.84 +38 26 43.8 Aur SRB 235 5.10 - 6.6 V
psi 1 Aur 000-BBL-224 06 24 53.90 +49 17 16.4 Aur LC -- 4.54 - 5.7 V
R Boo 000-BBV-561 14 37 11.58 +26 44 11.7 Boo M 223.4 6.2 - 13.1 V
RV Boo 000-BBV-580 14 39 15.86 +32 32 22.3 Boo SRB 228 7.5 - 8.7 V
RW Boo 000-BBV-603 14 41 13.38 +31 34 19.7 Boo SRB 209 7.5 - 8.6 V
RX Boo 000-BBV-376 14 24 11.63 +25 42 13.4 Boo SRB 158 7.0 - 8.3 V
FG Boo 000-BCT-936 15 11 34.98 +49 54 10.9 Boo SRB 700:00:00 7.3 - 8.3 V
X Cnc 000-BBQ-052 08 55 22.88 +17 13 52.6 Cnc SRB 180 5.69 - 6.94 V
RS Cnc 000-BBQ-327 09 10 38.80 +30 57 47.3 Cnc SRB 242.2 5.33 - 6.94 V
RT Cnc 000-BBQ-129 08 58 16.00 +10 50 42.7 Cnc SRB 90.04 7.05 - 8.1 V
V CVn 000-BBT-559 13 19 27.77 +45 31 37.7 CVn SRA 191.89 6.52 - 8.56 V
Y CVn 000-BBT-191 12 45 07.83 +45 26 24.9 CVn SRB 267.8 4.86 - 5.88 V
TU CVn 000-BBT-346 12 54 56.52 +47 11 48.2 CVn SRB 44.2 5.50 - 6.2 V
W CMa 000-BBM-557 07 08 03.44 -11 55 23.8 CMa SR 160 6.27 - 7.09 V
VY CMa 000-BBM-990 07 22 58.33 -25 46 03.2 CMa LC -- 6.5 - 9.6 V
RT Cap 000-BCL-175 20 17 06.53 -21 19 04.5 Cap SRB 422 6.8 - 8.0 V
R Car 000-BBQ-500 09 32 14.60 -62 47 20.0 Car M 307 3.9 - 10.5 V
S Car 000-BBR-212 10 09 21.89 -61 32 56.4 Car M 149.49 4.5 - 9.9 V
U Car 000-BBR-885 10 57 48.19 -59 43 55.9 Car DCEP 38.829 5.74 - 6.96 V
AG Car 000-BBR-864 10 56 11.58 -60 27 12.8 Car SDOR 371.4 5.7 - 8.3 V
BO Car 000-BBR-676 10 45 50.66 -59 29 19.3 Car SRC 130.7 7.15 - 7.94 V
BZ Car 000-BBR-831 10 54 06.25 -62 02 32.8 Car SRC 111.3 6.86 - 8.6 V
CK Car 000-BBR-451 10 24 25.36 -60 11 29.0 Car SRC 266 6.85 - 8.06 V
EV Car 000-BBR-373 10 20 21.60 -60 27 15.8 Car SRC 825 6.76 - 8.8 V
HR Car 000-BBR-436 10 22 53.84 -59 37 28.4 Car SDOR -- 6.8 - 8.80 V
IX Car 000-BBR-762 10 50 26.30 -59 58 56.6 Car SRC 384:00:00 6.87 - 7.9 V
ASAS J110135-6102.9 000-BGV-436 11 01 35.76 -61 02 55.8 Car LC -- 6.73 - 7.91 V
V0465 Cas 000-BBC-706 01 18 13.88 +57 48 11.4 Cas SRB 60 6.1 - 7.2 V
rho Cas 000-BCS-075 23 54 23.03 +57 29 57.8 Cas SDOR: -- 4.1 - 6.2 V
R Cen 000-BBV-294 14 16 34.32 -59 54 49.3 Cen M 502 5.3 - 11.8 V
T Cen 000-BBT-848 13 41 45.56 -33 35 50.6 Cen RVA 181.4 5.56 - 8.44 V
RV Cen 000-BBT-803 13 37 36.05 -56 28 35.0 Cen M 457 7.0 - 10.8 V
V0744 Cen 000-BCV-339 13 39 59.81 -49 56 59.8 Cen SRB 90 4.83 - 6.95 V
V0766 Cen 000-BDB-243 13 47 10.86 -62 35 23.0 Cen EB+SDOR: 1304 6.11 - 7.50 V
V0854 Cen 000-BCV-353 14 34 49.41 -39 33 19.2 Cen RCB -- 6.84 - 15.11 V
W Cep 000-BCQ-570 22 36 27.56 +58 25 33.9 Cep SRC 350 7.02 - 8.5 V
RW Cep 000-BCQ-372 22 23 07.02 +55 57 47.6 Cep SRD 346:00:00 6.0 - 7.3 V
SS Cep 000-BBG-279 03 49 30.02 +80 19 20.9 Cep SRB 90 6.5 - 7.7 V
AR Cep 000-BCQ-890 22 51 33.86 +85 02 47.0 Cep SRB 364:00:00 7.0 - 7.9 V
mu. Cep 000-BCP-244 21 43 30.50 +58 46 48.0 Cep SRC 835 3.43 - 5.1 V
T Cet 000-BBB-510 00 21 46.27 -20 03 28.9 Cet SRB 159.3 4.96 - 6.90 V
omi Cet 000-BBD-706 02 19 20.79 -02 58 39.5 Cet M 331.96 2 - 10.1 V
tet Cir 000-BCV-487 14 56 43.99 -62 46 51.7 Cir GCAS -- 4.81 - 5.65 V
R CrB 000-BBW-575 15 48 34.41 +28 09 24.3 CrB RCB -- 5.71 - 15.2 V
RR CrB 000-BBW-452 15 41 26.23 +38 33 26.6 CrB SRB 60.8 7.3 - 8.2 V
SV Crv 000-BCV-562 12 49 47.03 -15 04 44.1 Crv SRB 65.2 6.75 - 7.6 V
RU Crt 000-BCV-569 11 51 06.47 -11 12 28.1 Crt SRB 60.85 7.43 - 8.59 V
BH Cru 000-BCV-591 12 16 16.79 -56 17 09.6 Cru M 530 6.6 - 9.8 V
W Cyg 000-BCP-079 21 36 02.50 +45 22 28.5 Cyg SRB 131.7 5.10 - 6.83 V
RS Cyg 000-BCK-976 20 13 23.66 +38 43 44.5 Cyg SRA 417.39 6.5 - 9.5 V
AF Cyg 000-BCG-935 19 30 12.85 +46 08 52.1 Cyg SRB 92.5 6.4 - 7.7 V
CH Cyg 000-BCG-667 19 24 33.07 +50 14 29.1 Cyg ZAND+SR -- 5.6 - 10.1 V
V0460 Cyg 000-BCP-181 21 42 01.08 +35 30 36.7 Cyg SRB 180:00:00 5.57 - 6.5 V
V1070 Cyg 000-BCN-832 21 22 48.60 +40 55 57.2 Cyg SRB 62.4 6.56 - 7.56 V
U Del 000-BCM-398 20 45 28.24 +18 05 24.1 Del SRB 120 6.14 - 7.61 V
CT Del 000-BCV-812 20 29 26.35 +09 53 52.2 Del SRB 83.5 6.8 - 8.5 V
EU Del 000-BCM-022 20 37 54.71 +18 16 06.4 Del SRB 58.63 5.41 - 6.72 V
R Dor 000-BBH-174 04 36 45.60 -62 04 38.0 Dor SRB 172 4.78 - 6.32 V
AY Dor 000-BDQ-324 06 31 01.11 -66 52 14.6 Dor SR 86.4 6.93 - 7.94 V
RY Dra 000-BBT-376 12 56 25.91 +65 59 39.8 Dra SRB 300:00:00 5.88 - 8.0 V
TX Dra 000-BBX-762 16 35 00.72 +60 28 05.2 Dra SRB 78:00:00 6.8 - 8.2 V
UX Dra 000-BCG-391 19 21 35.52 +76 33 34.5 Dra SRB 175 5.94 - 7.1 V
AH Dra 000-BBX-958 16 48 16.63 +57 48 49.4 Dra SRB 158 6.4 - 8.6 V
Z Eri 000-BBF-457 02 47 55.92 -12 27 37.9 Eri SRB 74 6.17 - 7.18 V
RR Eri 000-BBF-587 02 52 14.19 -08 16 01.4 Eri SRB 94.6 6.80 - 7.62 V
BM Eri 000-BBG-729 04 13 29.62 -10 23 13.8 Eri SR 559 6.76 - 8.03 V
BR Eri 000-BBG-262 03 48 47.53 -07 00 53.9 Eri SRB 73.3: 6.5 - 8.16 V
TV Gem 000-BBK-810 06 11 51.41 +21 52 05.6 Gem SRC 229:00:00 6.27 - 7.5 V
BU Gem 000-BBK-829 06 12 19.10 +22 54 30.7 Gem SRC 325:00:00 5.74 - 7.4 V
pi 1 Gru 000-BDR-092 22 22 44.18 -45 56 52.5 Gru SRB 195.5 5.31 - 7.01 V
X Her 000-BBW-906 16 02 39.17 +47 14 25.3 Her SRB 102 5.8 - 7.0 V
ST Her 000-BBW-616 15 50 46.63 +48 28 58.8 Her SRB 144 6.8 - 8.3 V
UW Her 000-BCV-988 17 14 24.54 +36 22 04.5 Her SRB 103.6 6.8 - 8.7 V
AC Her 000-BCC-490 18 30 16.24 +21 52 00.6 Her RVA 75.29 6.85 - 9.0 V
IQ Her 000-BCW-007 18 17 54.84 +17 58 52.7 Her SRB 76.5 6.8 - 8.0 V
OP Her 000-BCW-013 17 56 48.53 +45 21 03.1 Her SRB 120.5 5.85 - 6.73 V
V0939 Her 000-BCW-069 17 10 18.53 +40 41 23.8 Her LB -- 7.47 - 8.50 V
g Her 000-BBX-539 16 28 38.55 +41 52 54.0 Her SRB 89.2 4.3 - 5.5 V
R Hya 000-BBT-665 13 29 42.78 -23 16 52.8 Hya M 380 3.5 - 10.9 V
U Hya 000-BBR-567 10 37 33.27 -13 23 04.4 Hya SRB 183.1 4.56 - 5.4 V
V Hya 000-BBR-784 10 51 37.25 -21 15 00.3 Hya SRA 530.7 6.0 - 12.3 V
Y Hya 000-BBQ-892 09 51 03.72 -23 01 02.4 Hya SRB 154.4 6.2 - 7.4 V
RT Hya 000-BBP-693 08 29 41.15 -06 19 07.6 Hya SRB 245.5 7.0 - 10.2 V
RV Hya 000-BCW-103 08 39 43.76 -09 35 13.0 Hya SRB 108.7 7.31 - 8.58 V
CL Hyi 000-BCW-147 02 27 46.84 -69 31 26.4 Hyi SRB 75 6.71 - 7.75 V
T Ind 000-BCW-148 21 20 09.48 -45 01 18.8 Ind SRB 272 5.76 - 6.47 V
R Leo 000-BBQ-798 09 47 33.49 +11 25 43.7 Leo M 309.95 4.4 - 11.3 V
R Lep 000-BBH-722 04 59 36.35 -14 48 22.5 Lep M 445 5.5 - 11.7 V
S Lep 000-BBK-689 06 05 45.54 -24 11 43.9 Lep SRB 97.3 6 - 7.58 V
RX Lep 000-BBJ-013 05 11 22.85 -11 50 57.2 Lep SRB 79.54 5.12 - 6.65 V
Y Lyn 000-BBN-148 07 28 11.61 +45 59 26.2 Lyn SRC 110 6.58 - 8.25 V
SV Lyn 000-BCW-270 08 03 39.94 +36 20 41.5 Lyn SRB 70:00:00 6.7 - 7.6 V
CE Lyn 000-BCZ-617 07 44 09.49 +38 50 16.1 Lyn SRB -- 7.3 - 8.02 V
XY Lyr 000-BCC-857 18 38 06.48 +39 40 06.0 Lyr SRC 120 5.6 - 6.6 V
HK Lyr 000-BCW-312 18 42 50.00 +36 57 30.9 Lyr SR 186 7.5 - 8.4 V
T Mic 000-BCW-371 20 27 55.19 -28 15 39.8 Mic SRB 352 6.74 - 8.11 V
CF Mic 000-BFS-579 21 25 28.36 -41 42 07.4 Mic SRB 56.05 7.1 - 8.3 V
U Mon 000-BBN-215 07 30 47.47 -09 46 36.8 Mon RVB 91.32 5.45 - 7.67 V
X Mon 000-BBM-114 06 57 11.81 -09 03 52.1 Mon SRA 155.8 6.8 - 10.2 V
RV Mon 000-BBM-172 06 58 21.49 +06 10 01.6 Mon SRB 121.3 6.88 - 7.7 V
SX Mon 000-BCW-383 06 51 57.33 +04 45 52.5 Mon SRB 77.67 7.43 - 8.21 V
BO Mus 000-BCW-458 12 34 54.46 -67 45 24.8 Mus SRB 132.4 5.3 - 6.56 V
X Oph 000-BCC-870 18 38 21.13 +08 50 02.8 Oph M 338 5.9 - 8.6 V
V0533 Oph 000-BBZ-578 17 53 03.32 -02 34 45.7 Oph SR 69.7 7.06 - 8.24 V
W Ori 000-BBH-841 05 05 23.72 +01 10 39.4 Ori SRB 212 5.5 - 6.9 V
BL Ori 000-BCW-577 06 25 28.18 +14 43 19.2 Ori SRB 153.8 5.9 - 6.6 V
BQ Ori 000-BCW-578 05 57 07.39 +22 50 20.2 Ori SRB 243 7.1 - 9.0 V
S Pav 000-BCJ-662 19 55 13.96 -59 11 44.3 Pav SRA 390 6.6 - 10.4 V
Y Pav 000-BCW-652 21 24 16.73 -69 44 01.9 Pav SRB 449 5.79 - 6.90 V
GO Peg 000-BCQ-944 22 55 00.97 +19 33 35.0 Peg SRB 79.3 7.14 - 7.91 V
PV Peg 000-BCW-728 22 23 56.39 +31 15 42.3 Peg SRB 520:00:00 6.6 - 7.7 V
SU Per 000-BCW-749 02 22 06.89 +56 36 14.9 Per SRC 533 7.2 - 8.7 V
CI Phe 000-BFC-595 23 44 19.19 -54 26 09.8 Phe SRB 739 7.08 - 8.20 V
R Pic 000-BBH-378 04 46 09.55 -49 14 45.0 Pic SR 168 6.35 - 10.1 V
Z Psc 000-BBC-612 01 16 05.03 +25 46 09.7 Psc SRB 155.8 6.37 - 7.49 V
TV Psc 000-BBB-684 00 28 02.84 +17 53 35.1 Psc SR 49.1 4.65 - 5.42 V
V0407 Pup 000-BFD-058 07 57 54.09 -20 25 43.3 Pup SRC 567:00:00 6.69 - 7.78 V
L2 Pup 000-BCZ-552 07 13 32.32 -44 38 23.1 Pup SRB 140.6 2.6 - 8.0 V
WX Ret 000-BCX-646 03 37 44.56 -55 23 46.7 Ret SRA 266 7.78 - 9.52 V
RY Sgr 000-BCG-016 19 16 32.77 -33 31 20.4 Sgr RCB 37.67 5.8 - 14.0 V
UX Sgr 000-BCW-982 18 54 54.48 -16 31 31.4 Sgr SRB 95.7 7.25 - 8.3 V
V1943 Sgr 000-BCX-064 20 06 55.24 -27 13 29.8 Sgr SRB 330 7.1 - 8.4 V
AH Sco 000-BBY-609 17 11 17.02 -32 19 30.7 Sco SRC 735 6.7 - 9.5 V
BM Sco 000-BBZ-237 17 40 58.55 -32 12 52.1 Sco L -- 5.25 - 6.46 V
V0905 Sco 000-BCX-161 17 41 59.03 -33 30 13.7 Sco SDOR 57:00:00 6.21 - 6.97 V
SW Scl 000-BCX-181 00 06 14.20 -32 48 58.9 Scl SRC 143.6 7.3 - 9.32 V
R Sct 000-BCD-304 18 47 28.95 -05 42 18.5 Sct RVA 146.5 4.2 - 8.6 V
tau 4 Ser 000-BBW-373 15 36 28.19 +15 06 05.0 Ser SRB 86.7 5.89 - 7.07 V
Y Tau 000-BBK-127 05 45 39.41 +20 41 42.1 Tau SRB 245 6.4 - 7.3 V
RX Tel 000-BCX-326 19 06 58.21 -45 58 13.5 Tel LC -- 6.45 - 7.47 V
BL Tel 000-BCX-337 19 06 38.11 -51 25 03.2 Tel EA/GS+SRD 778 7.09 - 9.08 V
W Tri 000-BCX-344 02 41 30.57 +34 30 58.0 Tri SR 108 7.4 - 8.4 V
X TrA 000-BCX-365 15 14 19.17 -70 04 46.0 TrA SR 361.1 5.03 - 6.05 V
DM Tuc 000-BFN-974 22 57 05.78 -57 24 03.7 Tuc SRB 74.58 6.88 - 8.19 V
Z UMa 000-BBS-553 11 56 30.22 +57 52 17.6 UMa SRB 195.5 6.2 - 9.4 V
RY UMa 000-BBS-756 12 20 27.33 +61 18 34.7 UMa SRA 310 6.49 - 7.94 V
ST UMa 000-BBS-211 11 27 50.38 +45 11 06.8 UMa SRB 80.88 6.0 - 7.2 V
TV UMa 000-BBS-388 11 45 35.04 +35 53 39.6 UMa SRB 53.74 6.72 - 7.45 V
VW UMa 000-BBR-892 10 59 01.80 +69 59 20.6 UMa SRB 615 6.69 - 7.71 V
V UMi 000-BBT-813 13 38 41.07 +74 18 36.3 UMi SRB 73 7.06 - 8.7 V
GO Vel 000-BFP-291 08 37 39.69 -40 26 08.1 Vel SRB 520 6.56 - 7.80 V
MN Vel 000-BFP-355 08 38 00.91 -46 54 15.4 Vel SRB 130:00:00 7.32 - 8.80 V
RT Vir 000-BBT-436 13 02 37.98 +05 11 08.4 Vir SRB 157.9 7.41 - 9.0 V
RW Vir 000-BCX-503 12 07 14.90 -06 45 56.0 Vir SRB 175 6.71 - 7.50 V
SS Vir 000-BBS-817 12 25 14.40 +00 46 11.0 Vir SRA 361 6.0 - 9.6 V
SW Vir 000-BBT-518 13 14 04.38 -02 48 25.2 Vir SRB 146 6.2 - 8.0 V
BK Vir 000-BCX-512 12 30 21.01 +04 24 59.1 Vir SRB 140 7.28 - 8.8 V
FP Vir 000-BBT-783 13 35 52.06 +08 17 34.2 Vir SRB 67.8 6.55 - 7.69 V
FI Vul 000-BCX-572 20 48 51.18 +22 59 39.0 Vul SR -- 6.97 - 8.30 V
